Plan the measuring line for grain receiving, storage and mill quality control: representative sampling, protein/moisture analysis, hectolitre and results recording work together.
Infracont SGrain is the NIR analyser we manufacture to bring protein, moisture and calibration-dependent composition analysis of grain and flour samples to different work locations. It can operate with an external 12 V power supply.
Infracont XGrain is the NIR grain analyser we manufacture for grain intake points and laboratories. It combines built-in hectolitre weight measurement with protein, moisture and other composition results supported by the application.
Perten IM 8800 is a family of models developed for the portable analysis of grains and suitable oilseeds NIR. This registration is considered as a second-hand device.

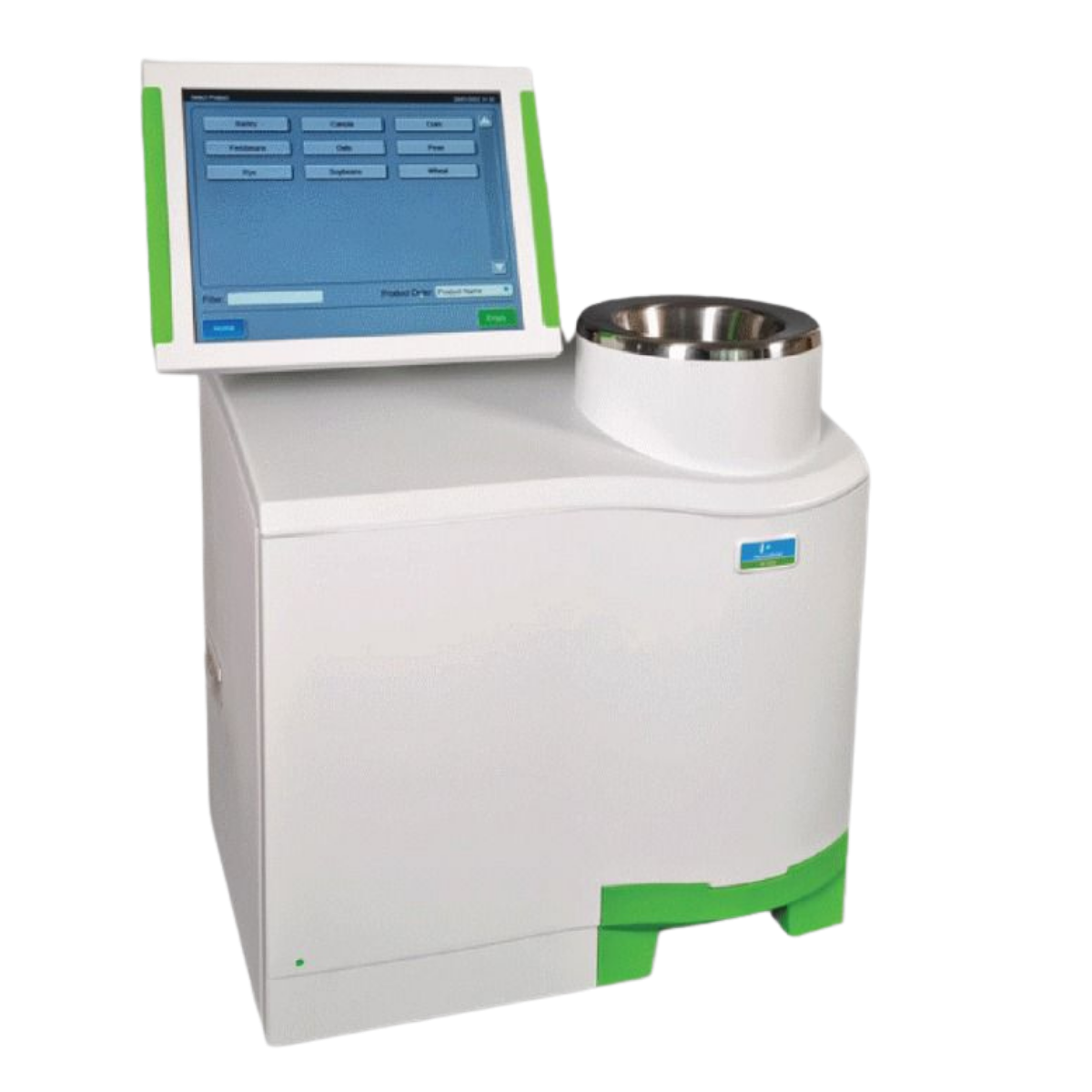

Perten Inframatic 9500 is an evaluated system for NIR/NIT based compositional analysis in whole grain and suitable oilseeds. The parameters and calibration scope of each product are verified separately.

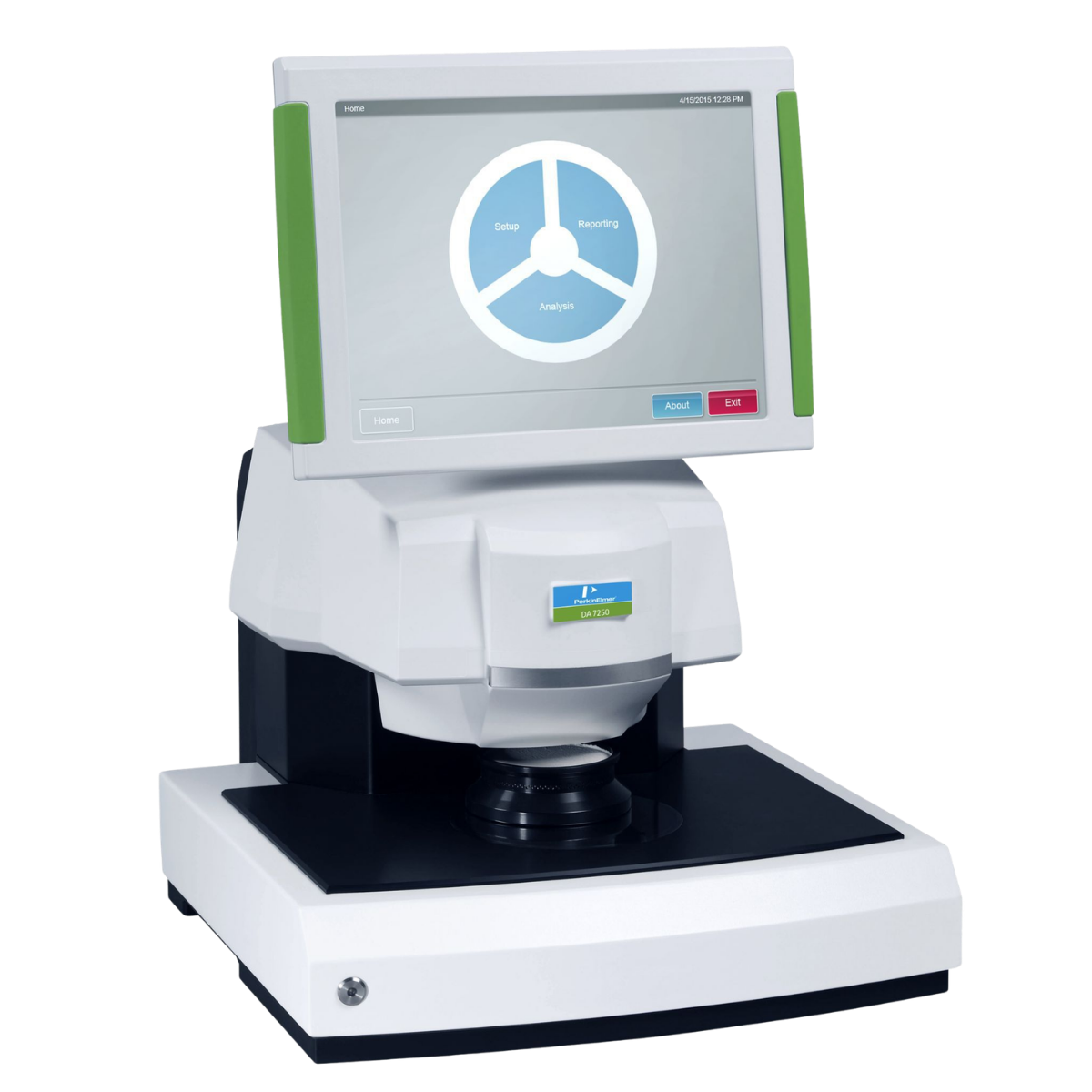

Perten DA 7250 is a system evaluated for NIR reflectance analysis of samples taken near the laboratory and production line. This record is in the second-hand product group.
Consider the main instrument, sampling, preparation, and validation steps as a single quality control process.
Prioritize the parameters you actually decide on in commercial acceptance and process control.
Choose a portable or laboratory system based on daily sample count, turnaround time, and operator load.
Ensure that the steps of sampling, splitting, weighing, analysis and reporting support each other.
Grain quality control does not only consist of the main analyser. The steps of representative sampling, correct sample division and preparation, measurement and result verification together create a reliable process.
The system to be installed for the purchasing point, licensed warehouse, flour or feed factory; It should be planned according to product type, decided parameters, daily capacity and reporting need.
Grain analyser selection is not based solely on the number of parameters. The decision based on which result is taken, how the sample is represented and how the results are recorded are decisive. Define crop coverage and control scheme separately for wheat, barley and corn.
Scroll horizontally to see the rest of the table.
| decision title | Information to be verified in the offer |
|---|---|
| Moisture/moisture control | Product scale moisture meter suitable for decision making at harvest, drying or warehouse entrance. |
| Composition analysis | Sample-appropriate NIR/NIT calibration for protein and additional relevant parameters. |
| Hectolitre weight | If necessary, separate equipment or configuration with internal modules such as XGrain. |
| Sample and recording line | Probe, divider, weighing, sample identification and monitoring of analysis results. |
Compound and hectolitre workflow of the XGrain at the peak receiving point; Consider the portability of the SGrain for operation in different locations. Sampling, aliquoting, and reference checking steps should also be included throughout the laboratory. Include products, daily capacity, required parameters and available equipment in your request for quotation.
Check out calibration and reference verification support or Request a quote for the device suitable for your sample.
Consider two NIR analysers based on your hectoliter measurement, display and portable usage needs.
| Feature | Infracont XGrain | Infracont SGrain |
|---|---|---|
| Featured usage | Grain intake and laboratory | Portable analysis at different points |
| Hectolitre weight | Built-in measurement module | No internal module in standard model |
| Screen | 8 inch touch | 5,7 inch touch |
| Weight | 13 kg | 10 kg |
| Analysis time | Approximately 1 minutes | Approximately 1 minutes |
| internal printer | Thermal | Thermal |
Standard model catalog values are taken as basis. Sample type, installed calibrations, accessories and configuration to be delivered are verified together at the time of quotation.
Share your sample capacity and measurement targets; Let's create the scope of device, auxiliary equipment, installation and training together.
Depends on desired measurements. Separate equipment may be required for composition analysis as well as hectolitre, sampling, splitting or reference checking.
The relevant product calibration, sample preparation condition and measurement range are selected separately. Eligibility from one product does not automatically carry over to another.
Include not only the analysis time of the device, but also the steps of sample acceptance, preparation, discharge, recording and control in the daily workflow.
Evaluate your model choice together with the area of use, sample and scope of delivery.
