Choose the NIR/NIT with optical method, sample form and verified calibration scope. Review together the application limits of the model and the delivery package for grain and flour analysis.
Infracont SGrain is the NIR analyser we manufacture to bring protein, moisture and calibration-dependent composition analysis of grain and flour samples to different work locations. It can operate with an external 12 V power supply.

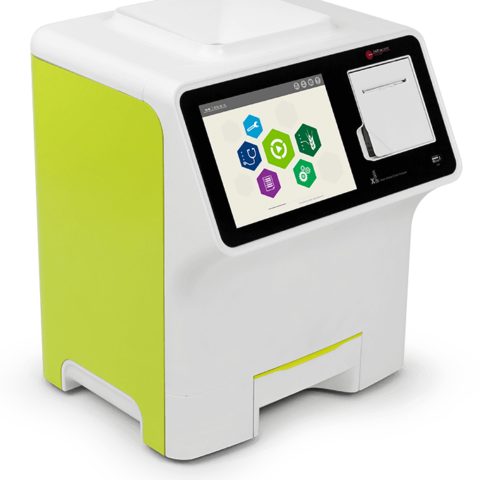

Infracont XGrain is the NIR grain analyser we manufacture for grain intake points and laboratories. It combines built-in hectolitre weight measurement with protein, moisture and other composition results supported by the application.
Portable whole grain NIR analysis system that measures protein, moisture, oil and other model-dependent parameters in grains and oilseeds.
Perten IM 8800 is a family of models developed for the portable analysis of grains and suitable oilseeds NIR. This registration is considered as a second-hand device.
Perten Inframatic 9500 is an evaluated system for NIR/NIT based compositional analysis in whole grain and suitable oilseeds. The parameters and calibration scope of each product are verified separately.
Perten DA 7250 is a system evaluated for NIR reflectance analysis of samples taken near the laboratory and production line. This record is in the second-hand product group.
Second hand Perten Inframatic 9500 is an evaluated system for composition analysis based on NIR/NIT in whole grain and suitable oilseeds. The parameters and calibration scope of each product are verified separately.
AgriCheck; It is an analyser designed to quickly evaluate moisture, protein and related parameters in grain quality control.

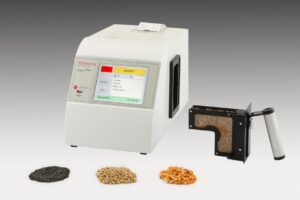

Mininfra Scan-T is a model name of the Infracont, preceding the NIR family of grain analysers. This registration is considered a second-hand device; The submodel and current hardware must be verified with the device label.

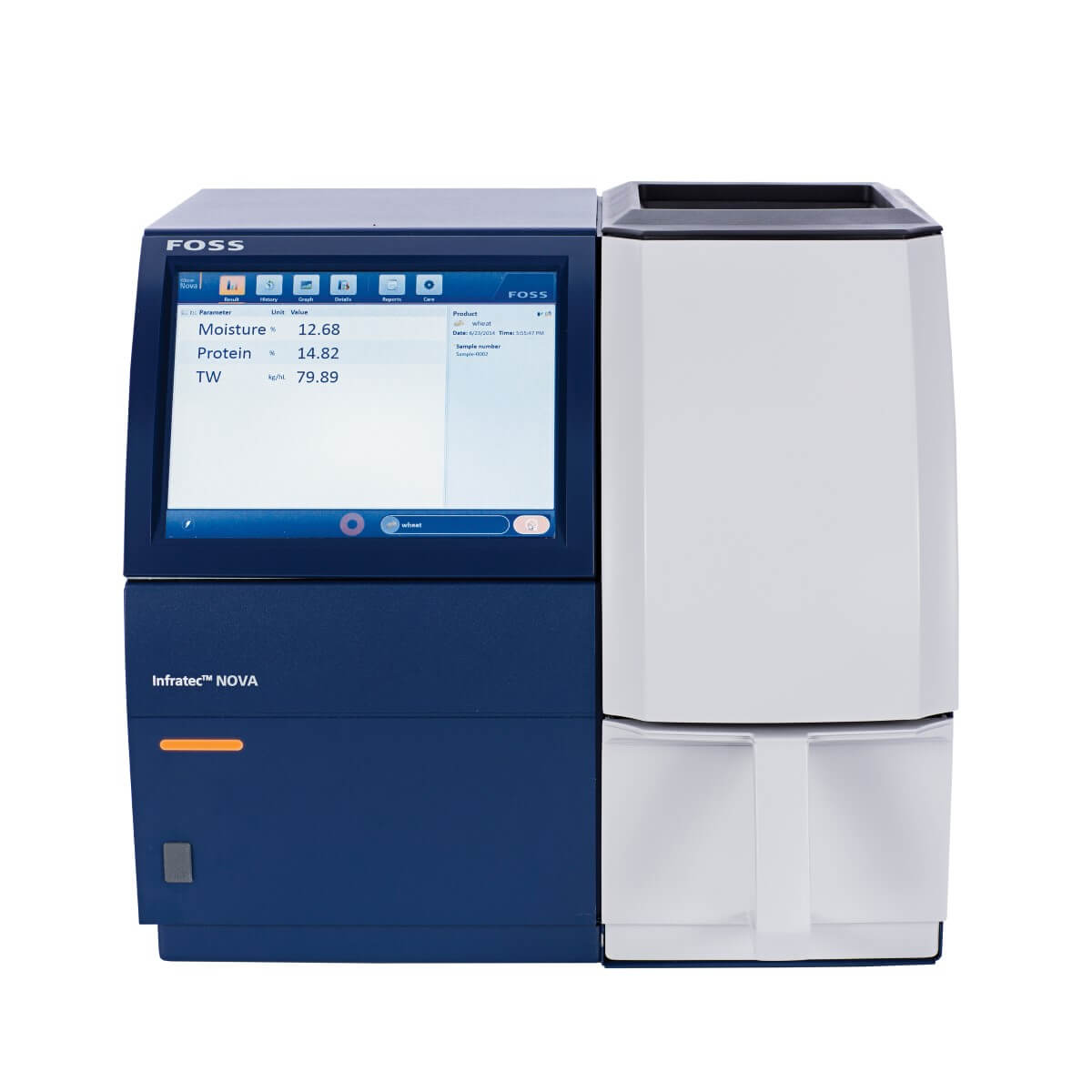

nfratec™ has always been the benchmark for technological excellence and performance in the field of grain analysis. We've raised the bar even higher with Infratec™ NOVA. Smaller, faster and easier to use, the Infratec™ NOVA represents the ultimate in technology, accuracy and ease of use and sets new standards for grain analysis.
Devices within the same technology family serve different samples and workflows. The scope of application must be defined before the device.
Evaluate transmittance and reflectance approaches together with the structure of the sample and the measurement target.
Include in the workflow the necessary preparation and sample container for a whole grain, ground or liquid sample.
Validate support plan for existing product calibrations, reference laboratory, and future applications.
NIR and NIT technologies help predict multiple quality parameters in a short time without using chemical reagents. The performance of the systems depends on the optical method used, sample structure and calibration scope.
When choosing a rapid analyser, not only the technical specifications list; The reference laboratory, calibration update process, data transfer and operator workflow should also be planned.
NIR describes the general technology family and NIT describes the measurement approach by passing light through the sample. Whole grain, flour, feed raw material or liquid sample may not be measured with the same preparation and optical setup. First define your actual sample; Select the method and device accordingly.
Scroll horizontally to see the rest of the table.
| decision title | Information to be verified in the offer |
|---|---|
| sample form | Whole grain, flour, ground or other form;required cuvette and preparation step. |
| Calibration scope | Each product–parameter pair, expected range, reporting basis and need for updating. |
| Daily capacity | Besides measurement, sample loading, unloading, cleaning and control time. |
| Registration and integration | Sample ID, result output, network connection, and desired data transfer. |
When evaluating XGrain and SGrain for grain/flour, select the appropriate calibration and cuvette together for the application. The reference method and representative sample setup to be used near the device should be determined at the purchasing stage. See hardware, calibration, accessories and service items separately in your quote.
Check out calibration and reference verification support or Request a quote for the device suitable for your sample.
Consider two NIR analysers based on your hectoliter measurement, display and portable usage needs.
| Feature | Infracont XGrain | Infracont SGrain |
|---|---|---|
| Featured usage | Grain intake and laboratory | Portable analysis at different points |
| Hectolitre weight | Built-in measurement module | No internal module in standard model |
| Screen | 8 inch touch | 5,7 inch touch |
| Weight | 13 kg | 10 kg |
| Analysis time | Approximately 1 minutes | Approximately 1 minutes |
| internal printer | Thermal | Thermal |
Standard model catalog values are taken as basis. Sample type, installed calibrations, accessories and configuration to be delivered are verified together at the time of quotation.
Share sample type, parameters and number of analyzes per day; Let's plan the appropriate system and calibration approach together.
The product and parameters to be installed are determined during the offer. The presence of calibration for one sample does not mean that another product is also in scope.
The physical structure of the sample, preparation method, components to be measured and reference verification are evaluated together. The method name alone does not determine suitability.
Compare hardware, calibration, cuvette, data transfer, installation and support coverage from the same sample and parameter list.
Evaluate your model choice together with the area of use, sample and scope of delivery.
